Conductive zinc oxide

Explanation

Electrically conductive ZnO powder is a n-type semiconductor doped with different elements. "23-K" is used as antistatic paints for semiconductor factory, and applied to control the conductivity of rubber by mixed in rubber products.
Kind of inorganic, light colored and electrically conductive material is limited. Among them, ZnO has excellent stability and high transparency, so Electro-Conductive Zinc Oxide is applied for many fields. "Pazet" exhibits many functions, UV block, IR block by electro-conductivity and anti-bacteria. Doping element, doping concentration and particle size can be optimized for customer requirement.

Feature
  • Low cost, high quality inorganic conductive powder.
  • Available in particle sizes depending on the application, from microns to nano-orders that emphasize transparency.
  • Highly white inorganic powder that can be mixed with bright colors and is easy to disperse.
  • It has stable conductivity over a long period of time.
  • In addition to zinc oxide's original functions such as UV protection and deodorization, it also has the ability to absorb infrared rays.
  • Rubber properties are significantly improved.
  • Powder with low environmental impact and high safety.
Main uses

Rubber, paint, resin, paper, fiber, ceramic, glass, electronic materials, medical products, cosmetics, antistatic, current adjustment, antibacterial, UV/IR cut, electrostatic recording paper, deodorization, toner, current adjustment, transparent electrode, Ultraviolet light emission, antivirus, sensor



Grade

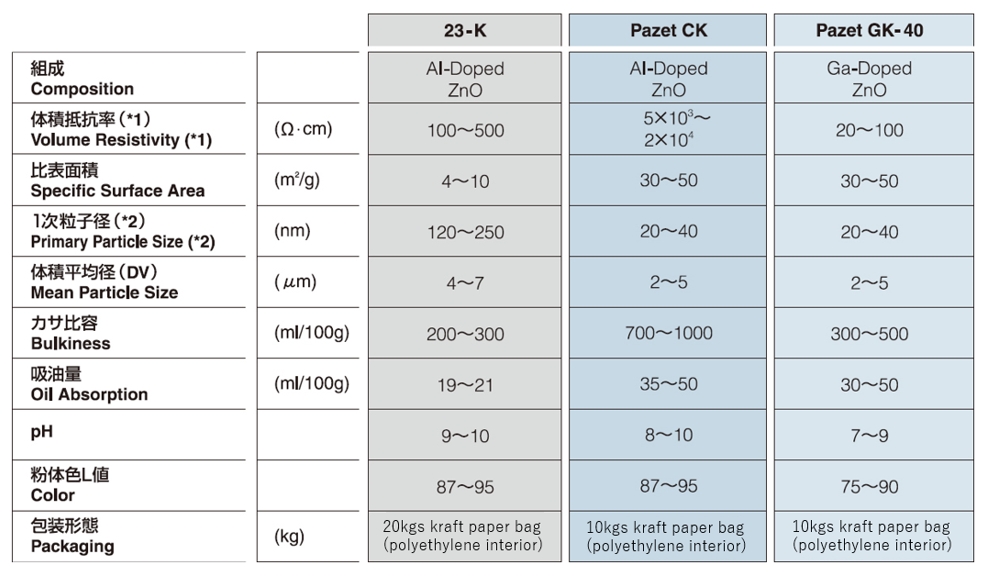

conduc-grade
23-K

23-K is a conductive inorganic powder with high cost performance. It is close to white, so you can color it to your favorite color. It can also be used for paints, elastomers, resins, etc., and can be expected to have an antistatic effect.

cdt01
23-K
Pazet Series (nano particle sized conductive zinc oxide)

It is conductive zinc oxide that has been made into nano-sized particles, and has transparency, UV protection, and conductivity. It is suitable for use in films and coating liquids as an antistatic material, as well as for thin films. Custom-made products are also available depending on the application, so please contact us.

cdt02
